AfterVLX 100 Bifold / Folding Door in Doral, FL | TruePane Windows & Doors
The VLX 100 Bifold Door, manufactured by installed by our team at TruePane Windows & Doors, is a wall-to-wall accordion glass system that opens an entire room to the outdoors. Doral homeowners choose it for patios, pool decks, and great rooms where a standard sliding door just won’t do. When fully folded, the panels stack to the side and the opening becomes nearly unobstructed. We’re an authorized installation partner for ViewLux products, which means your warranty stays intact and the install is handled by people who know this door inside and out. Want pricing for your Doral home? Call (386) 854-7948.
Product Overview - VLX 100 Bifold / Folding Door

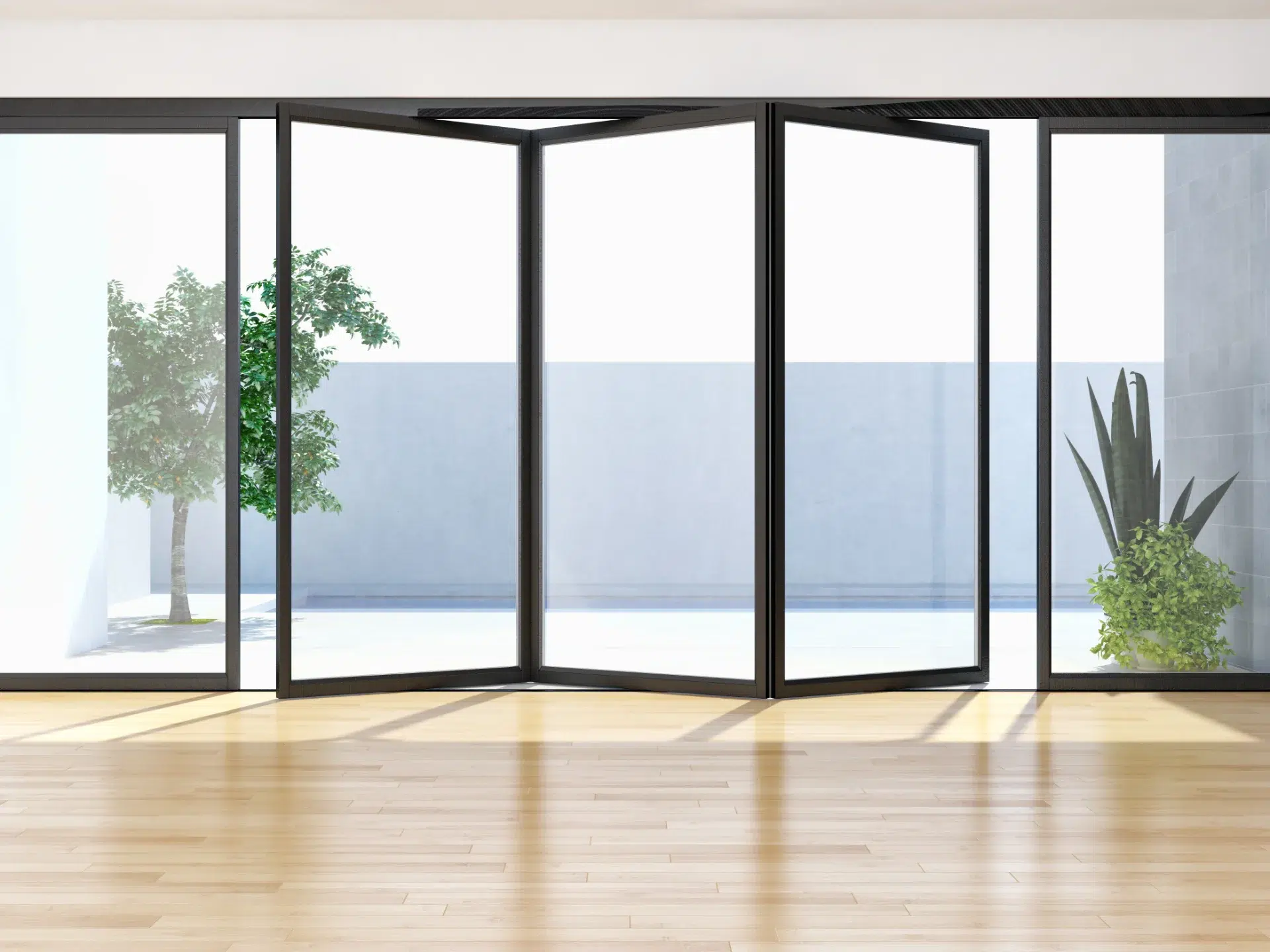

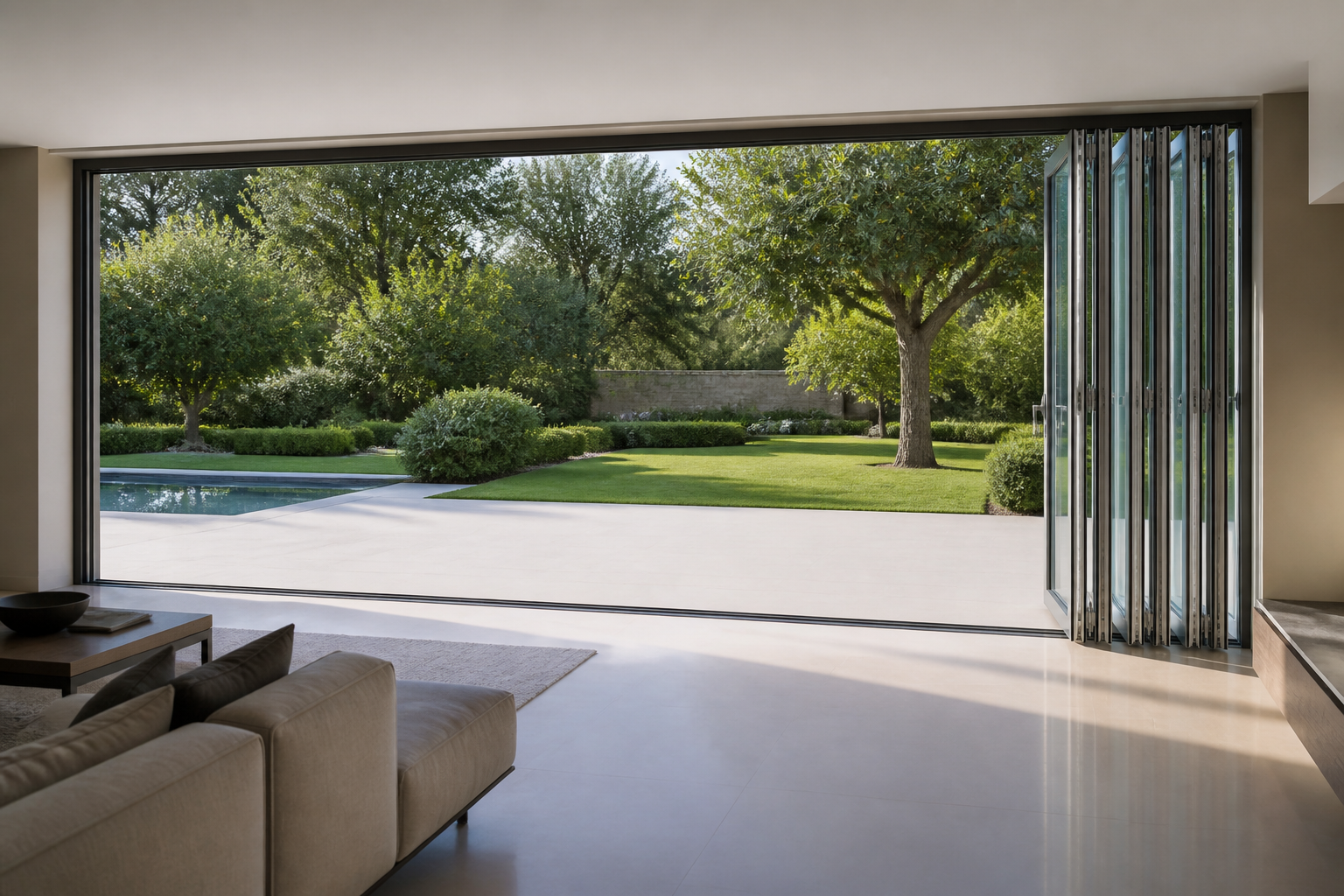

The VLX 100 is an accordion-style aluminum bifold door built around one idea: remove the barrier between your living room and your lanai. Each panel folds and slides along a track, stacking neatly at one or both ends of the opening. The result is an uninterrupted span of glass that, when open, gives you a wall-to-wall opening and the kind of seamless indoor-outdoor living Doral’s year-round warmth makes so appealing.
Architecturally, this door is at home in contemporary single-story homes, mid-century remodels, and Mediterranean-style villas across Doral. We’ve installed it on covered terraces, pool-facing kitchens, and home gyms that open to a garden. The aluminum frame is the workhorse here: it resists corrosion from humidity and pool chemicals, stays square over decades of daily use, and supports large glass panels without sagging. The panels glide on a low-friction track system, so a five or six-panel unit still opens with one hand.
Homeowners choose the VLX 100 over standard sliding doors for three reasons. First, the opening size. A sliding door leaves half the opening covered at all times. A bifold clears nearly the entire span. Second, the sightlines. The slim 2.56-inch profiles give you more glass and less metal. Third, longevity. Aluminum with a quality finish doesn’t warp, rot, or swell the way wood and vinyl do in South Florida humidity. Call (386) 854-7948 if you’d like to see one in person.
Technical Specifications
Here’s what the VLX 100 brings to the table, in plain terms. These are the numbers we use when helping Doral clients select the right configuration.

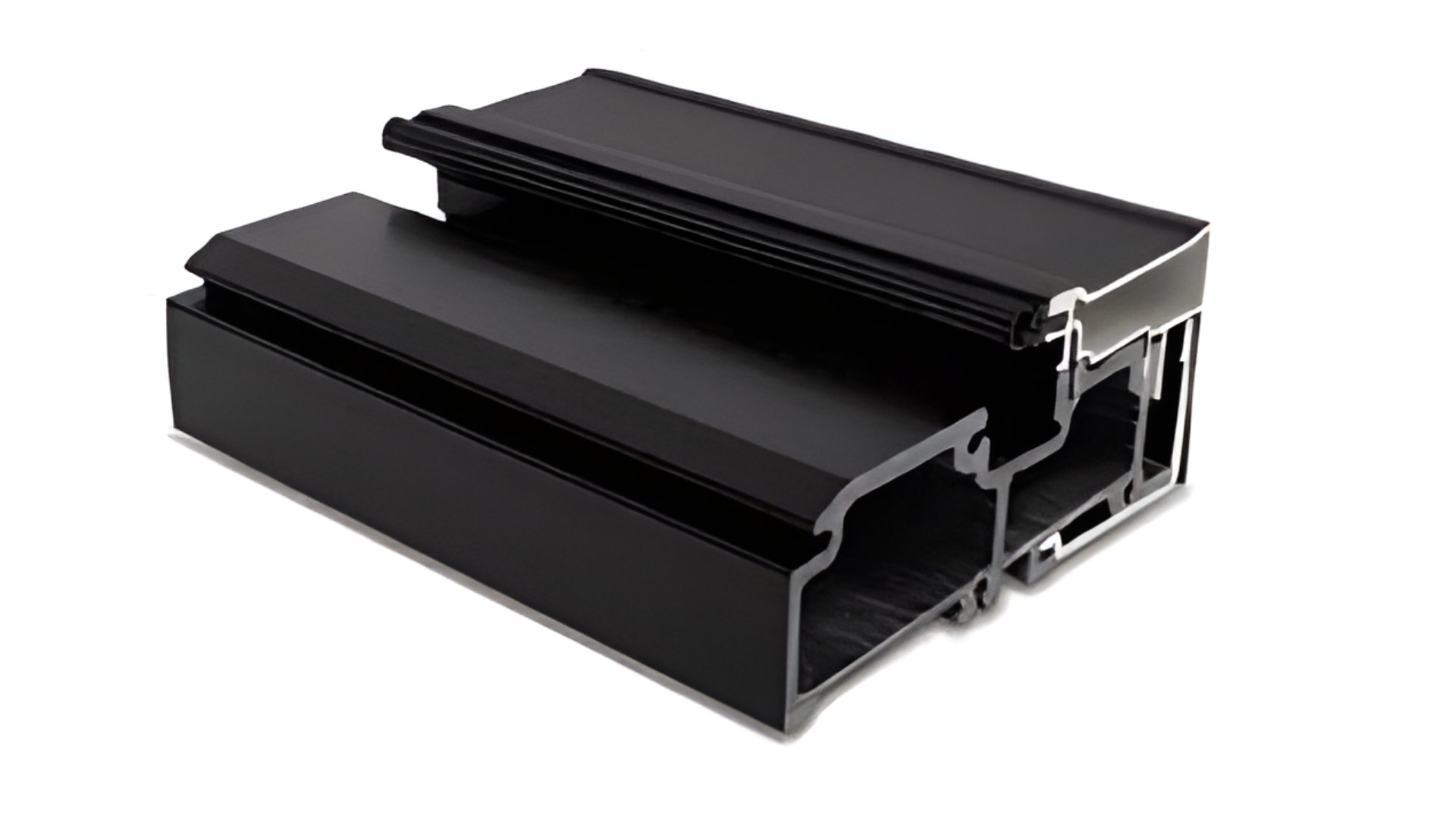

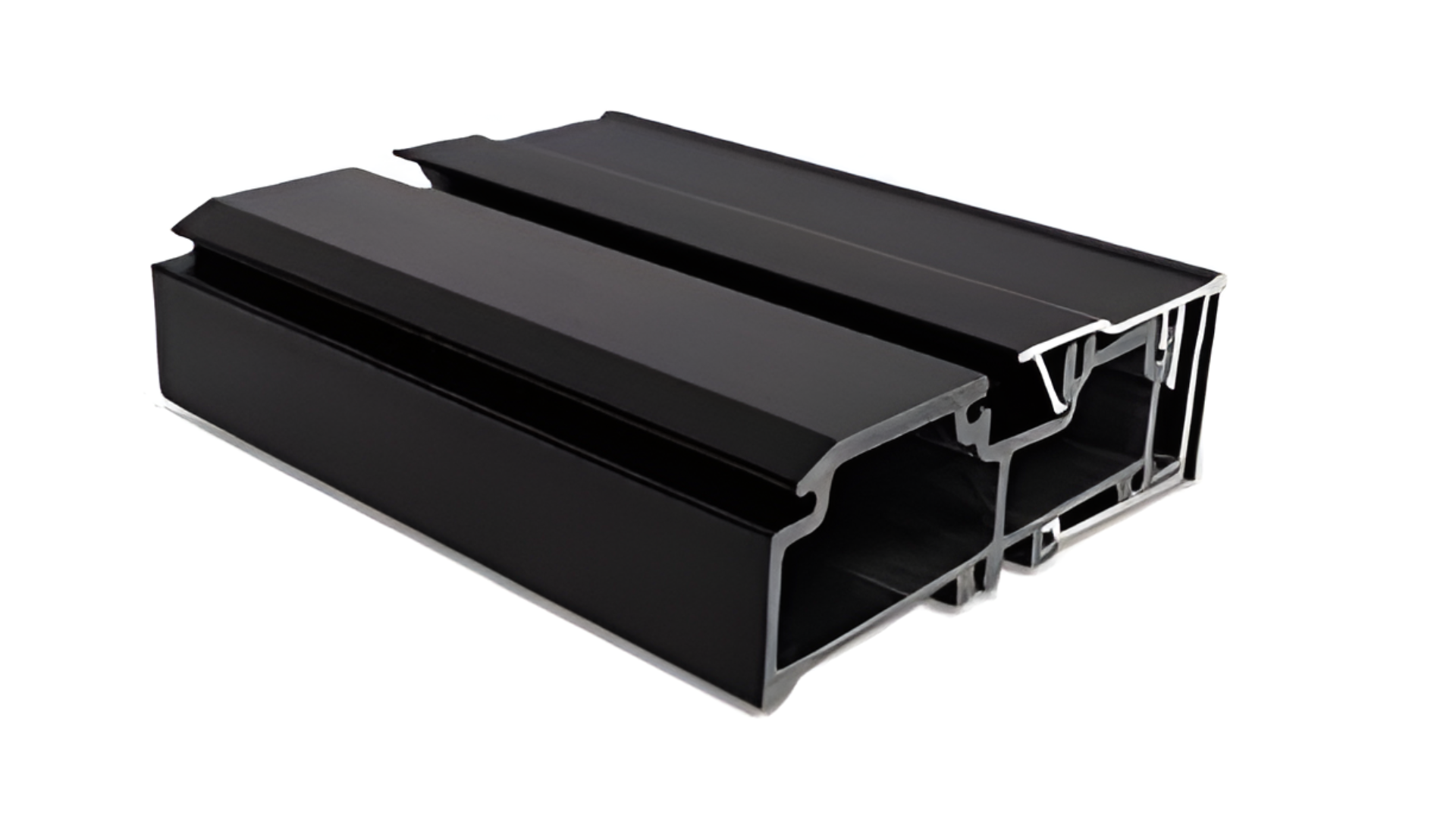

- Frame material: Extruded aluminum with a 0.098″ wall thickness
- Profile width: 2.56 inches, measured at the interlocking stiles
- Maximum span: Up to 20 feet wide in a single opening
- Track configurations: 2-panel, 3-panel, 4-panel, 5-panel, and 6-panel layouts
- Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Screen options: Retractable screen or no screen
- Energy performance: Thermal break technology, NFRC-rated for energy performance
- Installation standard: AAMA 2400/2410 compliant installation by TruePane Windows & Doors
Performance Features
Thermal Efficiency - The VLX 100 uses a thermal break inside the aluminum frame, separating the interior and exterior metal surfaces. That cuts heat transfer dramatically compared to non-thermal aluminum. For Doral’s summer afternoons, this is what keeps your AC bill from climbing when the sun hits the glass. NFRC-rated figures are available per configuration.
Acoustic Performance - The laminated glass option adds a sound-dampening layer between glass panes. We recommend it for Doral homes near NW 41st Street, the Palmetto Expressway, or any street with routine traffic. It brings a noticeable drop in road noise without changing the look of the door.
Airtightness & Weather Seal - Every perimeter joint is sealed with AAMA 812 low-expansion foam, then trimmed and capped. The interlocking panel joints use dual weatherstripping. The result is a door that doesn’t whistle during afternoon thunderstorms and doesn’t let conditioned air escape at the meeting stiles.
Waterproofing - The track and sill system is engineered to shed water away from the interior. During our installs in Doral, we pay special attention to the transition between the door and the deck or patio, because that’s where most water intrusion happens. Proper slope, proper sealant, proper flashing. Same-day tropical downpours are the test, and this system is built for them.
Wind Resistance - The VLX 100 is wind-load rated for local climate requirements. That’s not a marketing phrase. In Doral, building code requires doors to survive serious storm force. The ViewLux engineering on this unit includes reinforced interlocking panels and heavy-duty track anchoring that transfer wind pressure to the structure, not just the frame.
Security & Hardware - The multi-point locking system engages at multiple points along the panel stiles, not just a single latch. The hinges are stainless steel. The track is designed to resist lifting. Combined with laminated glass, this door is a real deterrent, not a decorative one.
Color & Glass Options
The VLX 100 offers six finish options. Premium Black is our most requested finish in Doral right now, it reads crisp and modern against white stucco or a pool deck. Pure White fits homes with brighter, coastal interiors and provides maximum heat reflection on the exterior side. Anodized Silver has a classic aluminum look that suits mid-century and contemporary builds. Bronze adds warmth without going dark, and pairs well with travertine or paver patios. Champagne is a soft, warm metallic that complements cream-colored exteriors. Teak Wood mimics the look of hardwood without any of the humidity problems wood brings to South Florida.
For glass, Clear is standard and budget-friendly. Low-E adds energy performance; this should be the default for west-facing openings in Doral. Tempered is safety-rated, and required in most door applications by code. Laminated combines safety with sound control and impact resistance. Gray Tint and Black Tint cut glare and add privacy, which is useful for street-facing openings or bedrooms that open to a patio. Not sure which glass fits your situation? Call (386) 854-7948 and we’ll walk you through it.
Installation by TruePane Windows & Doors in Doral
Here’s the part most sales brochures skip: a bifold door only performs as well as its installation. A perfectly manufactured door, set into an opening that’s out of square, will bind, leak, and eventually fail. That’s why we treat installation as its own discipline, and why every VLX 100 we install in Doral follows the same sequence.
We start with a pre-install inspection of the opening. We check the rough opening dimensions, the floor level, the header, and the condition of the surrounding structure. If there’s any issue, we address it before the door arrives. Then we set the frame level, plumb, and square. On a 20-foot opening, that means working across the full span with continuous adjustment until every panel hang is dead-on. The track is shimmed, anchored, and set to the correct slope for drainage.
Every perimeter joint gets AAMA 812 low-expansion foam sealant, exactly per spec. The threshold is flashed and sealed. Then we hang the panels, adjust the hinges and rollers, and run the door through full open and close cycles. Finally, we water-test the sill and perimeter. If water is going to find a way in, we’d rather find it at installation than during a Doral thunderstorm.
We install per AAMA 2400/2410, the recognized standard for fenestration installation. This matters because ViewLux warranties are clear: improper installation voids the product warranty. Our team is a ViewLux-authorized installation partner, which means the work is done to the manufacturer’s spec and your warranty stays valid. For Doral homes specifically, we account for the local wind-load requirements and the humidity-driven expansion and contraction of the surrounding slab and stucco. That’s experience you won’t get from a general handyman. Call (386) 854-7948 to schedule an on-site measurement.
Frequently Asked Questions - VLX 100 Bifold / Folding Door
Most VLX 100 orders take four to six weeks from final drawings and deposit to delivery at our Doral warehouse. Custom sizes, laminated glass, and specialty finishes can push that to eight weeks. We recommend planning around your target install date rather than the reverse, especially if you’re coordinating with a contractor or a party at home. Call (386) 854-7948 and we’ll give you a realistic timeline for your specific configuration.
It can, depending on the glass package you choose. Low-E glass with a qualifying NFRC-rated U-factor and Solar Heat Gain Coefficient may be eligible for federal energy efficiency incentives. We can’t guarantee eligibility until we see the final spec, but we’ll provide the NFRC documentation you need to check with your tax preparer. Call (386) 854-7948 and we’ll help you select a package that maximizes the credit.
The VLX 100 carries a manufacturer warranty from ViewLux on the frame, finish, and hardware, with the glass covered under the glass manufacturer’s terms. The key condition is installation: the door must be installed by an authorized partner, per AAMA standards, or the warranty is void. TruePane Windows & Doors is an authorized installation partner, so your warranty stays intact when we handle the install.
Yes. The VLX 100 spans up to 20 feet wide, and within that limit we configure the number of panels, the panel widths, and the stack direction to fit your opening. Height is also adjustable within the system’s engineering limits. If your opening is outside the standard range, we’ll tell you before you ever place a deposit. Call (386) 854-7948 with your rough measurements for a quick feasibility answer.
Wipe the frames and track with a damp cloth and mild soap every few months. Keep the bottom track clear of leaves and debris, which we see plenty of in Doral during the wet season. Lubricate the rollers and hinges annually with a silicone-based lubricant. Avoid ammonia-based cleaners on the finish. The aluminum itself won’t rust, but neglecting the track is the fastest way to make the door feel stiff. We’re happy to show you the full routine at installation.
Get a Quote - VLX 100 Bifold / Folding Door in Doral
If you’re ready to see what a wall-to-wall opening would look like in your Doral home, let’s start with a free on-site measurement. We’ll measure your opening, review glass and finish options, and give you a written line-item quote. No pressure, no change orders later. Call TruePane Windows & Doors at (386) 854-7948 and mention the VLX 100.
Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Doral, FL.
