AfterGeometric & Shaped Windows in Doral, FL | TruePane Windows & Doors
Geometric and shaped windows turn an ordinary wall into the focal point of a room. They’re the triangular gable accent, the octagonal centerpiece above a tub, the curved transom that brings morning light into a Doral entryway. But in South Florida, a beautiful window that can’t hold up to a hurricane is a liability. TruePane Windows & Doors fabricates and installs impact-rated geometric and shaped windows custom-built for your opening, so you get the architectural detail you want without gambling on wind-zone protection. We’ve installed these across Doral, from townhomes near Downtown Doral to larger residences in Doral Isles and Grand Bay. Call (386) 854-7948 to talk through your project.
Product Overview - Geometric & Shaped Windows
A geometric window is any non-rectangular configuration: triangles, hexagons, octagons, pentagons, trapezoids, circles, half-rounds, and radius-topped shapes. Doral homeowners and builders use them to add character to Mediterranean and contemporary facades alike, or to capture a view where a standard window feels like an afterthought. What separates a TruePane impact-rated geometric window from a decorative aftermarket piece is the engineering behind the glass and the frame.
Each unit is custom-fabricated to the exact dimensions and angles of your rough opening. There’s no forcing a stock size into a hole and hoping the sealant hides the gaps. The laminated glass is cut and assembled for that specific shape, then set into an aluminum or vinyl frame that’s engineered to the same High-Velocity Hurricane Zone standards as our rectangular impact windows. The result: a triangular window over a front door or a curved-top unit in a stairwell that actually keeps the building envelope intact when wind pressure climbs.
We order these through our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, which gives us flexibility on glass makeup, frame finish, and configuration. The line matters less than the engineering behind it, and every option we offer is documented with the compliance paperwork Doral’s building department expects to see.
Technical Specifications
Here’s what you’re working with when you spec a geometric or shaped impact window through TruePane Windows & Doors:
- Frame materials: Aluminum or vinyl. Aluminum is the standard pick for coastal Doral exposure, vinyl for tighter budget windows that still want solid thermal performance.
- Maximum size: Custom-fabricated to order. There is no catalog cap; the shape and area drive the engineering and the design pressure rating.
- Glass options: Laminated impact glass with a PVB interlayer, Low-E insulated glass, tinted glass, or clear glass. Laminated is always the structural core on an impact-rated unit.
- Finish options: White, almond, bronze, black, and tan.
- Compliance documentation: Miami-Dade NOA and Florida Product Approval numbers issued per configuration. We verify the specific number on your quote.
- Design pressure: Matched to your wind zone, up to +/-100. We never overstate a rating to close a sale.
Hurricane & Compliance Performance
Laminated Impact Glass
The core of every impact-rated geometric window is laminated glass with a PVB (polyvinyl butyral) interlayer. Under missile impact, the glass cracks but the interlayer holds the shards in the frame. The window stays in the opening, which keeps wind and water on the outside where they belong.
Miami-Dade NOA / Florida Product Approval
Each configuration carries a Miami-Dade Notice of Acceptance and/or Florida Product Approval number. These are issued per configuration, not blanket approvals, so the exact number appears on your specific quote and permit submittal paperwork.
FBC / HVHZ Compliance
These windows are engineered to Florida Building Code High-Velocity Hurricane Zone requirements. That’s the standard Doral and Miami-Dade County enforce, and it’s stricter than the inland code used in the rest of Florida.
TAS 201 / 202 / 203 Testing Context
HVHZ-rated products are tested under the TAS protocol family. TAS 201 covers large-missile impact, TAS 202 covers cyclic wind-pressure loading, and TAS 203 covers forced-entry resistance. When we say a window is HVHZ-compliant, this is the test battery behind it.
Design Pressure Matched to Your Wind Zone
We match design pressure to the actual wind zone of the structure, up to +/-100, and never a rating higher than the configuration supports. Overstating a DP rating is how buildings fail. We’d rather tell you the honest number and get the job done right.
Energy Performance

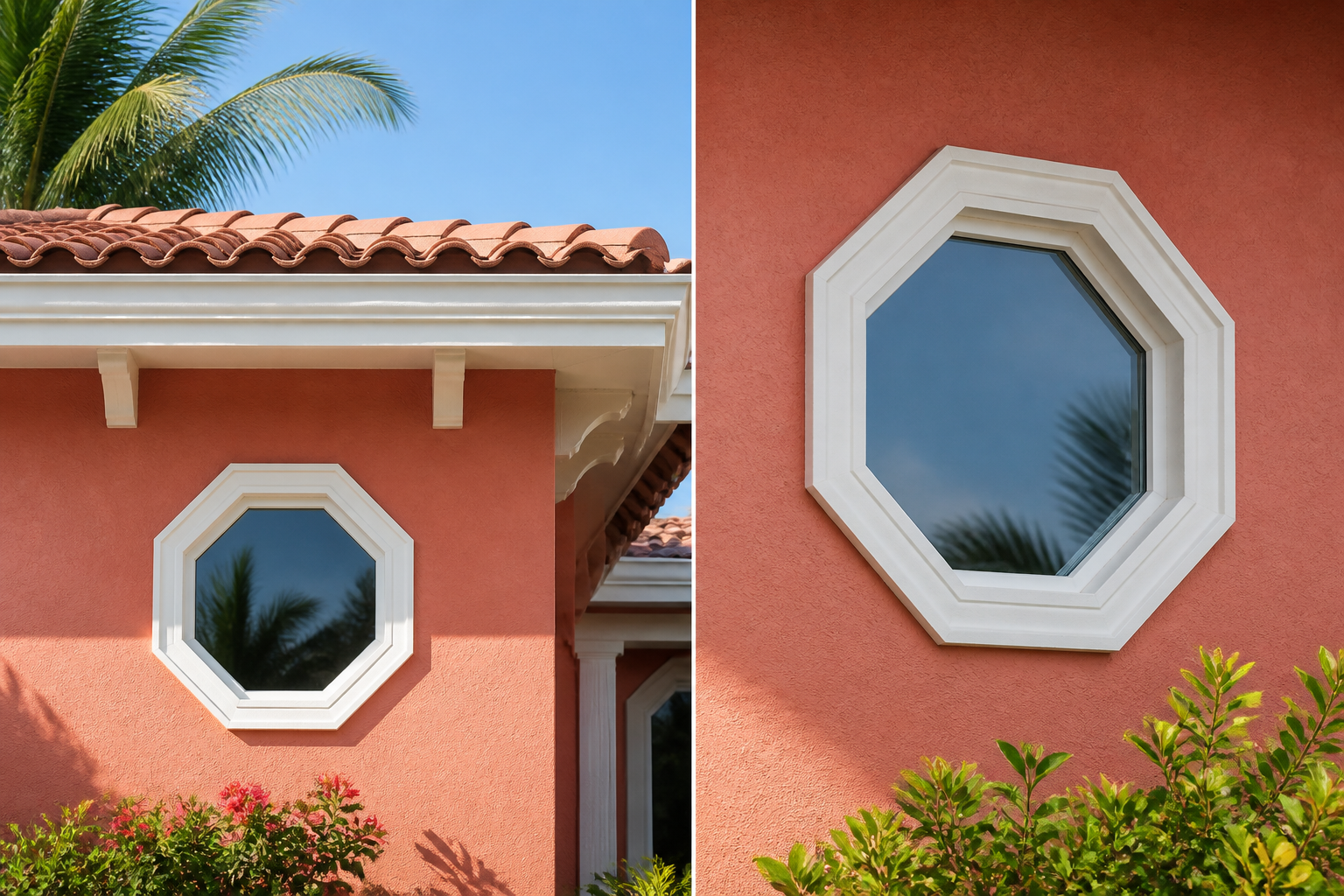

Low-E and insulated glass options are available for geometric and shaped windows. A west-facing octagonal window in Doral benefits from Low-E more than most people expect, and insulated units help keep the afternoon heat from turning a pretty accent into a hot spot.
Color & Glass Options
Finish selection on a geometric window does more than match trim. White and almond read clean against the light stucco walls common across Doral and Fontainebleau. Bronze and black frames give a sharp, modern outline that works well on contemporary builds and darker facades. Tan splits the difference, blending with warm neutrals without disappearing into the wall.
On the glass side, clear laminated is the standard impact choice and keeps the view honest. Tinted glass cuts glare on east- and south-facing exposures without changing the architectural line. Low-E insulated glass adds an energy layer for rooms that get heavy afternoon sun. For a Doral home, an octagonal window over a soaking tub with Low-E glass is one of the most practical upgrades we sell, because it handles both privacy and heat gain without needing a window treatment.
Installation by TruePane Windows & Doors in Doral
An impact window is only as good as the installation around it. A geometric window with an NOA rating doesn’t protect your Doral home if the installer leaves a sloppy perimeter seal or shims the unit out of square. That’s why our installation practice follows AAMA 2400 and 2410 standards, and why we seal the perimeter with AAMA 812 low-expansion foam before the final trim goes on.
Our process starts with a pre-install inspection of the rough opening. On a shaped window, the opening is everything: angles, dimensions, plumb, and level all get checked before we order the unit. A template may be taken on complex shapes so the fabricated window matches the actual hole, not the architect’s aspirational drawing. Once the unit arrives, it’s set level, plumb, and square, shimmed correctly, and anchored per manufacturer and HVHZ requirements.
After that, the perimeter seal goes in and we run a water test before final trim. We know Doral’s permitting process and what the building department expects to see on an HVHZ submittal: the correct NOA or FL Product Approval number for that specific configuration, among other things. We hand over a clean install and the paperwork to go with it. The truth is, most window failures we see in Doral aren’t product failures. They’re installation failures. A rated window installed wrong performs like an unrated one, and in a hurricane zone that’s a risk nobody should carry quietly.
Frequently Asked Questions - Geometric & Shaped Windows
The design pressure is matched to your specific wind zone, up to +/-100, and never rated higher than the configuration supports. Doral’s exposure typically drives us toward the upper range, but we confirm the required DP for your address before quoting. Call (386) 854-7948 and we’ll calculate it for your opening.
Lead times run longer than stock rectangular windows because every unit is fabricated to order. Expect roughly 6 to 10 weeks from final measurement to delivery at your Doral job site, depending on the line and the complexity of the shape. On a permit-driven project, we coordinate the order so the windows arrive when the opening is ready.
Yes. Doral and Miami-Dade County require the NOA or Florida Product Approval number for the exact configuration you’re installing to be included with the permit submittal. We provide the correct documentation on your quote and again at permit time, so there’s no back-and-forth with the building department.
That’s the whole point of a geometric window. You’re not picking from a list of standard shapes; the window is fabricated to your opening. Triangles, hexagons, octagons, radius tops, and compound shapes are all possible. We template complex openings in the field to make sure the fabricated unit fits the real conditions in your Doral home, not just the plan sheet.
Wash the glass with mild soap and water, and wipe the frame down a couple times a year, especially after salt-heavy storms. Keep weep holes clear so water drains the way the design intended. Don’t paint or caulk over the weep system. Anything beyond routine cleaning, call us before you reach for a ladder. Call (386) 854-7948 if a unit ever takes a hit; we’ll inspect it and tell you honestly whether it needs glass replacement.
Get a Quote - Geometric & Shaped Windows in Doral
If you’re planning a geometric or shaped window in Doral, start with a real measurement and an honest design pressure number. TruePane Windows & Doors will measure on site, spec the window to your opening, and price the whole job, including installation. Call (386) 854-7948 to schedule your free on-site measurement and get a written quote.
Written by the team at TruePane Windows & Doors, serving Doral and Miami-Dade County with impact-rated windows and doors.
Six Reasons Homeowners Choose TruePane Windows & Doors
Impact systems engineered to design pressures up to +/-100, matched to your wind zone - your openings hold when the storm arrives.
Low-E insulated impact glass from our manufacturer lines commonly cuts monthly cooling bills 20-30%.
Laminated impact glass shuts out up to 40% of outside noise - traffic, neighbors, weather.
Monitoring services run $30-90 a month. Laminated impact glass resists forced entry around the clock, with no subscription.
Florida homeowners average around 25% savings on the windstorm portion of their policy after protecting every opening - some homes qualify for more.
A full impact package upgrades curb appeal, buyer confidence and appraised value in one project.
