The VLX 138 Panoramic Sliding Door is what you spec when an opening is too large for ordinary sliders and the view is the whole point. Built with a 0.138-inch wall thickness in the aluminum profile and engineered to span up to 36 feet, it carries glass panels that turn an entire wall into the view. Doral homeowners choose it for great rooms, primary suites, patios facing the golf course, and lakefront living rooms. TruePane Windows & Doors is an authorized ViewLux installation partner right here in Doral, so you get factory-matched product support and installation that holds the manufacturer warranty. Call (386) 854-7948 to schedule a free on-site measurement.

Call (386) 854-7948

Product Overview - VLX 138 Panoramic Sliding Door

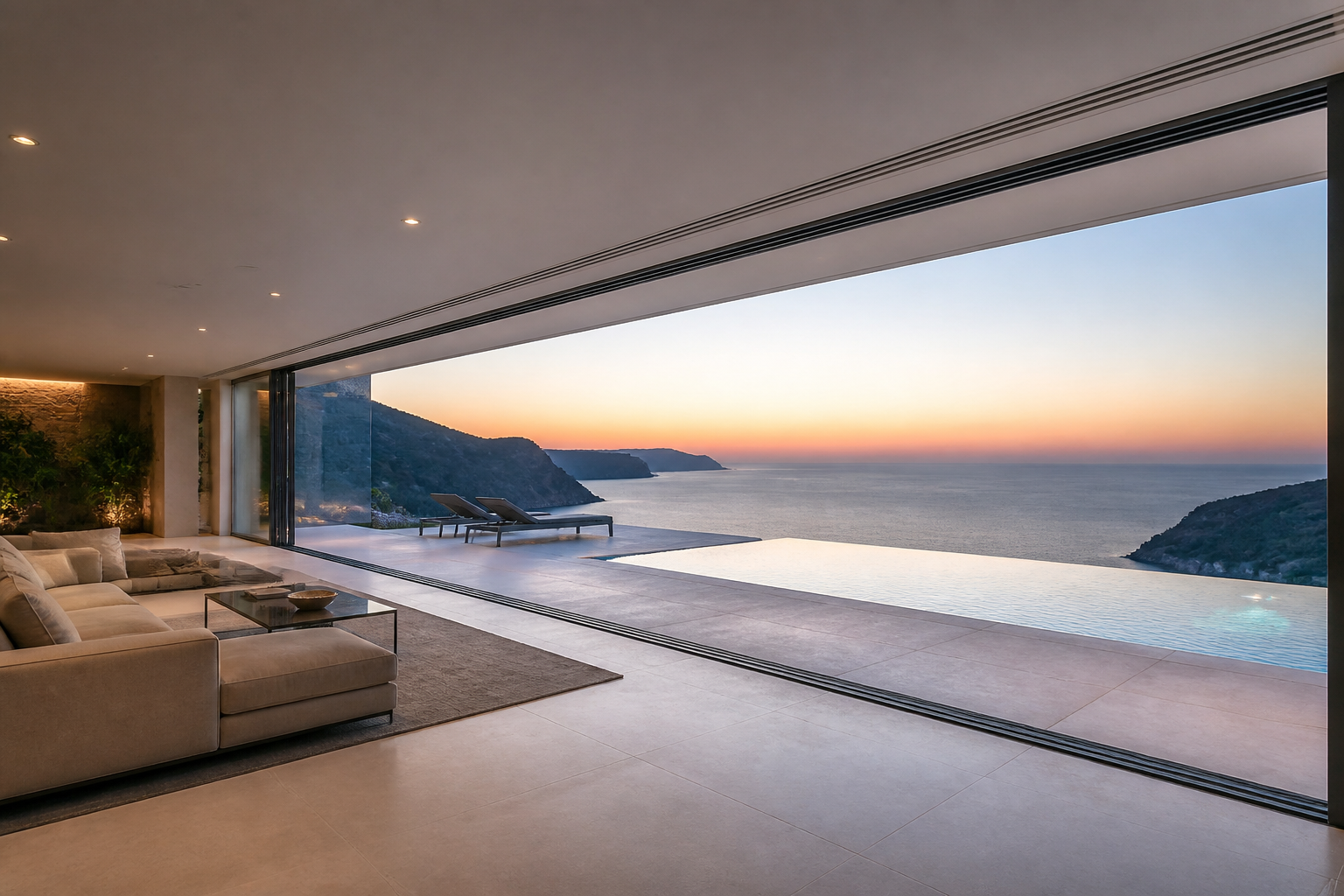

The VLX 138 is ViewLux’s large-span panoramic slider, and the name tells you what it does: panorama. Panels slide on stainless steel bearings engineered for a glide that feels nearly weightless even at 36 feet wide. The 1.535-inch profile width keeps sightlines slim so the door reads as glass first, frame second. Luxury large-span panoramic slider with expansive uninterrupted views and an ultra-smooth glide on stainless bearings is the short version, but the lived experience is what sells it. You stand in your living room in Doral, push a panel with two fingers, and a 12-foot wall of glass slides open like a pocket door. That’s the product.

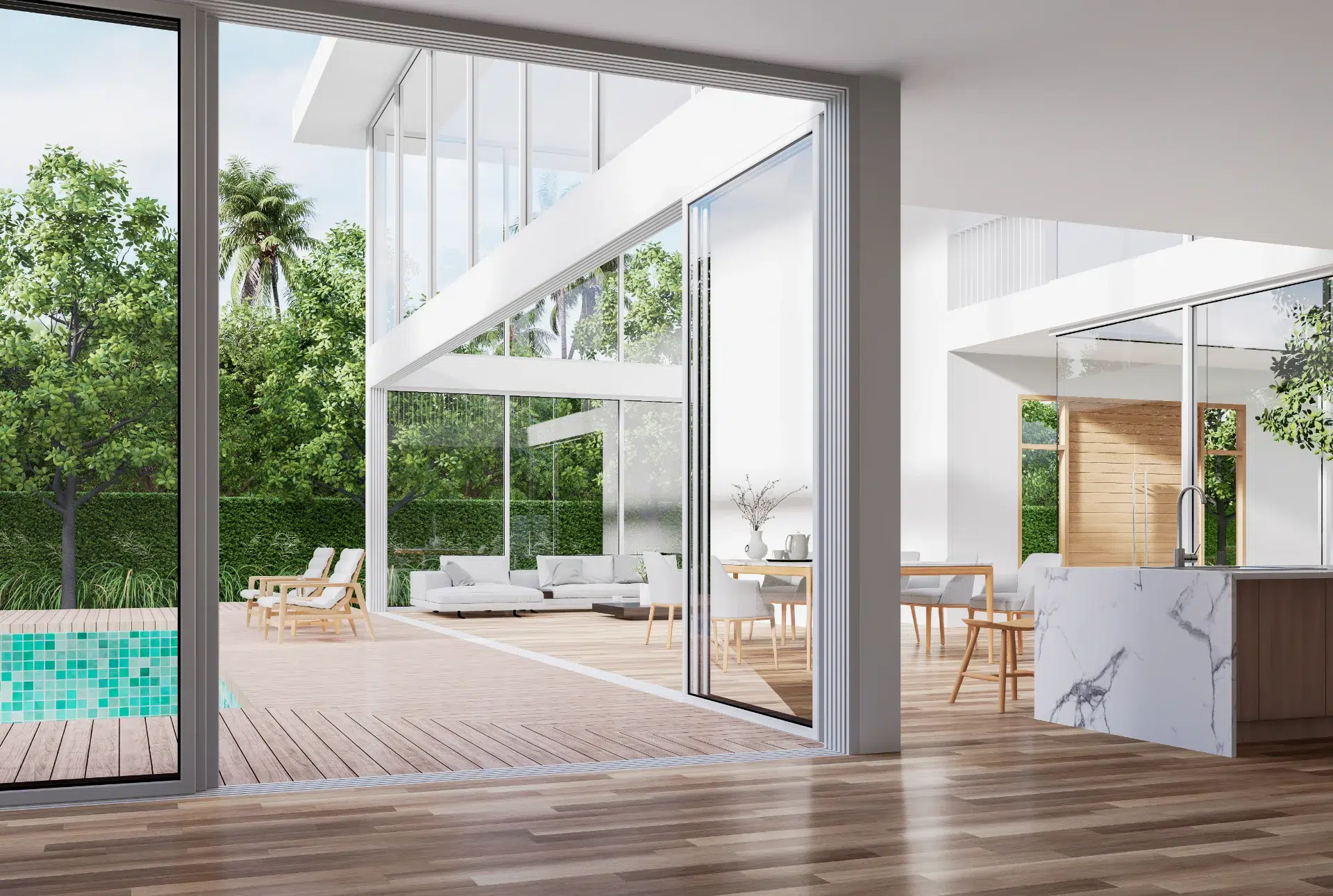

Architecturally, the VLX 138 suits modern and transitional homes in Doral’s newer communities like Downtown Doral, Grand Bay, and Costa del Sol, but it also holds its own in renovated mid-century homes where owners want to replace dated sliders without rebuilding the opening. The aluminum frame handles South Florida heat, humidity, and storm season better than wood or vinyl. Panels ride on precision-machined stainless bearings that won’t corrode in coastal air. We’ve installed these in Doral homes where the slider opens to a summer kitchen, a pool deck, or an exterior living room, and the door becomes the transition point between inside and outside that the whole room is organized around. The VLX 138 is the door you buy when you want the opening to be the feature, not just the access.

Why this series over a standard sliding door? Three reasons. Span, glide, and customization. The VLX 138 handles openings that ordinary sliders can’t, the glide holds up after thousands of cycles, and the track, sill, screen, finish, and glass options let you build the door to the exact exposure and aesthetic of your Doral home. TruePane Windows & Doors helps you spec it correctly the first time, because the wrong sill choice on a Doral patio that catches afternoon rain is an expensive lesson. Call (386) 854-7948 for guidance and a quote.

How much does the VLX 138 Panoramic Sliding Door cost in Doral?

A VLX 138 Panoramic Sliding Door in Doral typically starts around $4,800 to $7,500 installed for a standard 8-foot by 8-foot two-panel configuration with clear Low-E glass and an anodized silver finish. Costs rise with panel count, span width, impact-rated laminated glass, premium finishes like Teak Wood, and sill upgrades. Every opening is different, so these are starting ranges, not fixed quotes.

Technical Specifications

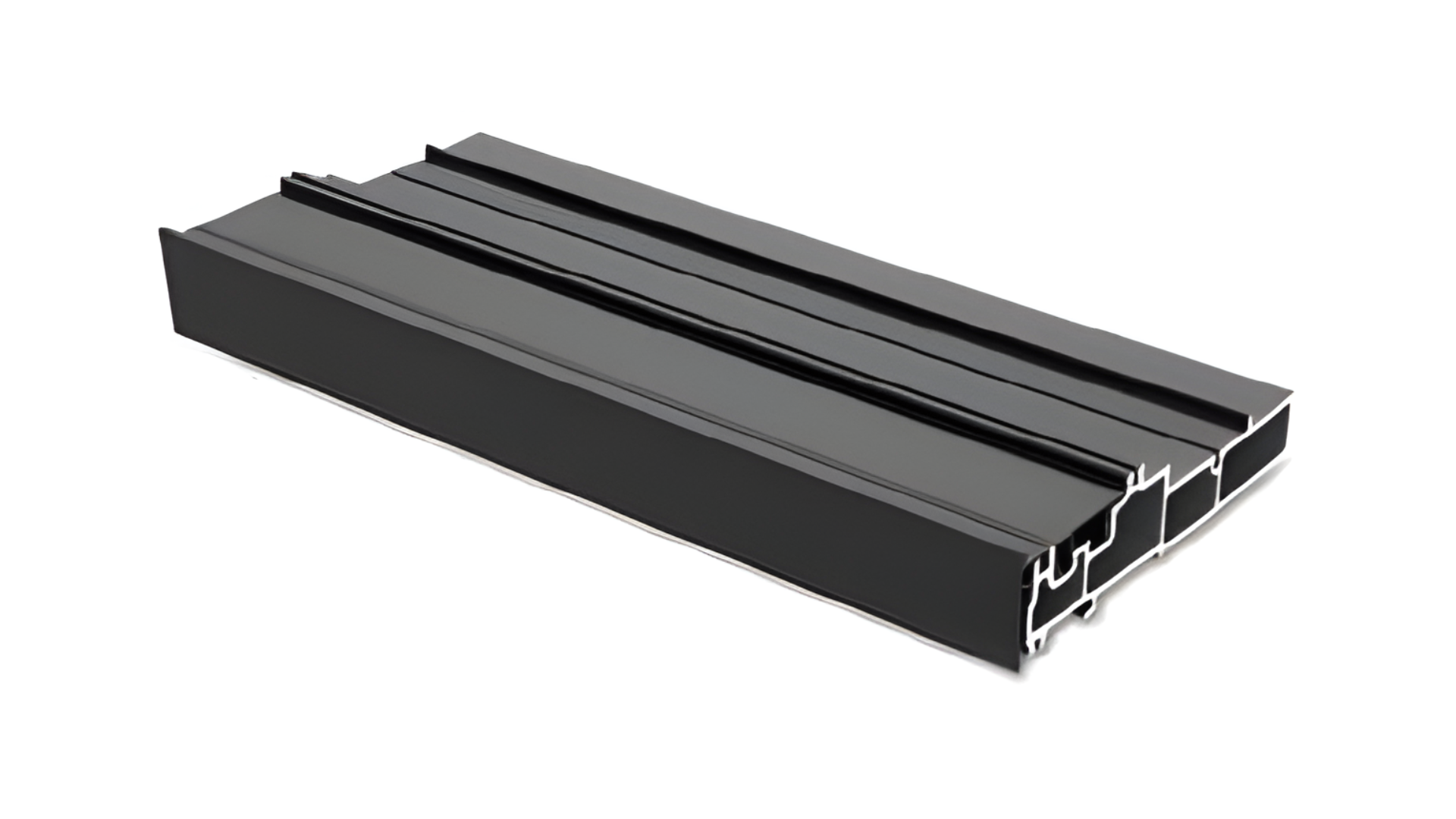

These specifications matter in Doral. The 0.138-inch wall thickness is heavier than standard residential aluminum, which is what allows the wide spans without deflection. The four-track configuration lets you stack multiple panels to one side for a nearly full-width opening. The recessed sill is popular in Doral remodels where homeowners want a continuous floor plane from living room to pool deck with no trip hazard.

Performance Features

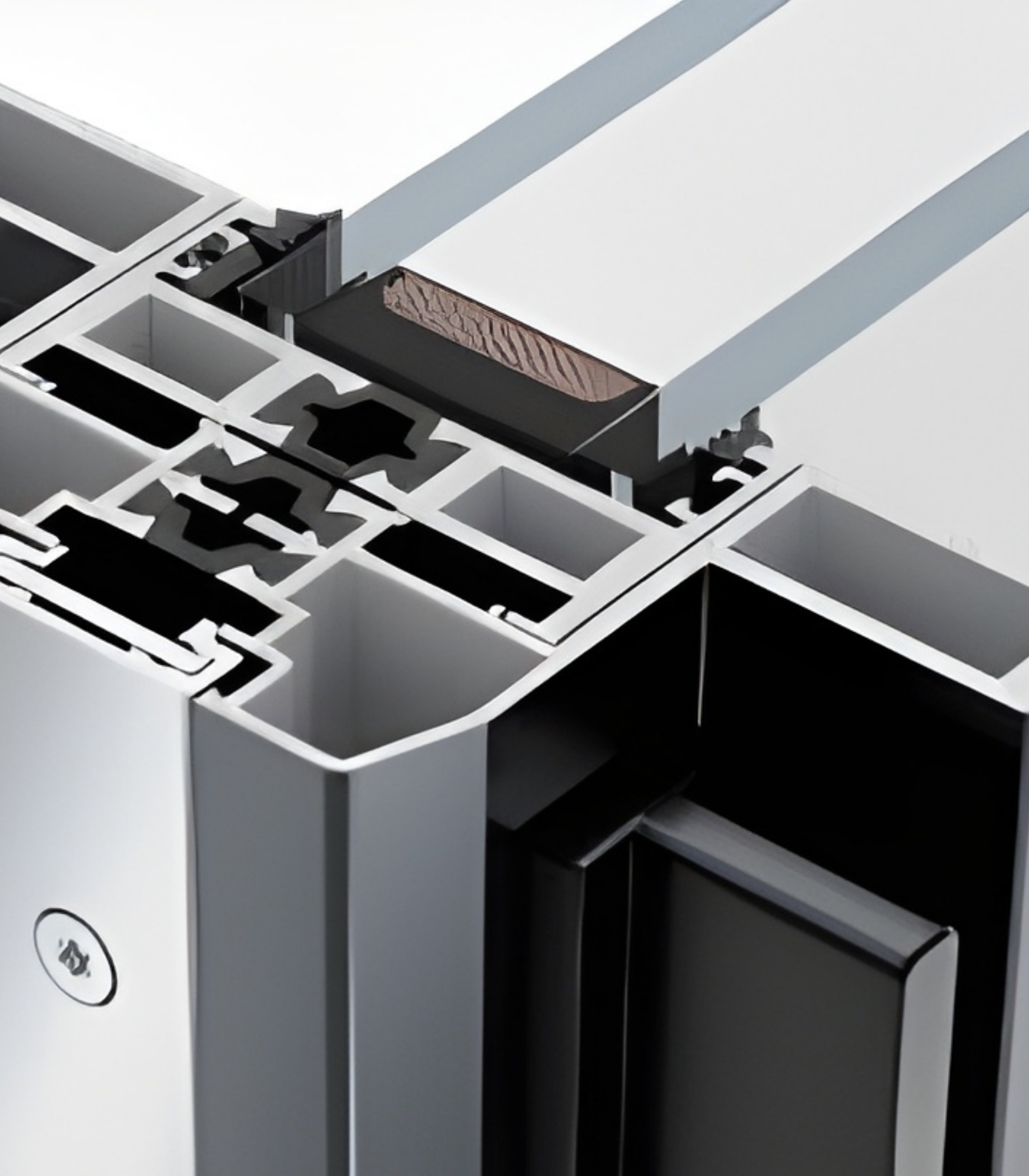

Thermal Efficiency - The VLX 138 uses thermal break technology that separates the interior and exterior aluminum profiles, cutting heat transfer through the frame. NFRC-rated energy performance means you can pull the actual numbers rather than guess. In Doral’s June-to-October heat, a thermally broken frame with Low-E glass keeps the air conditioning inside and the afternoon sun outside where it belongs.

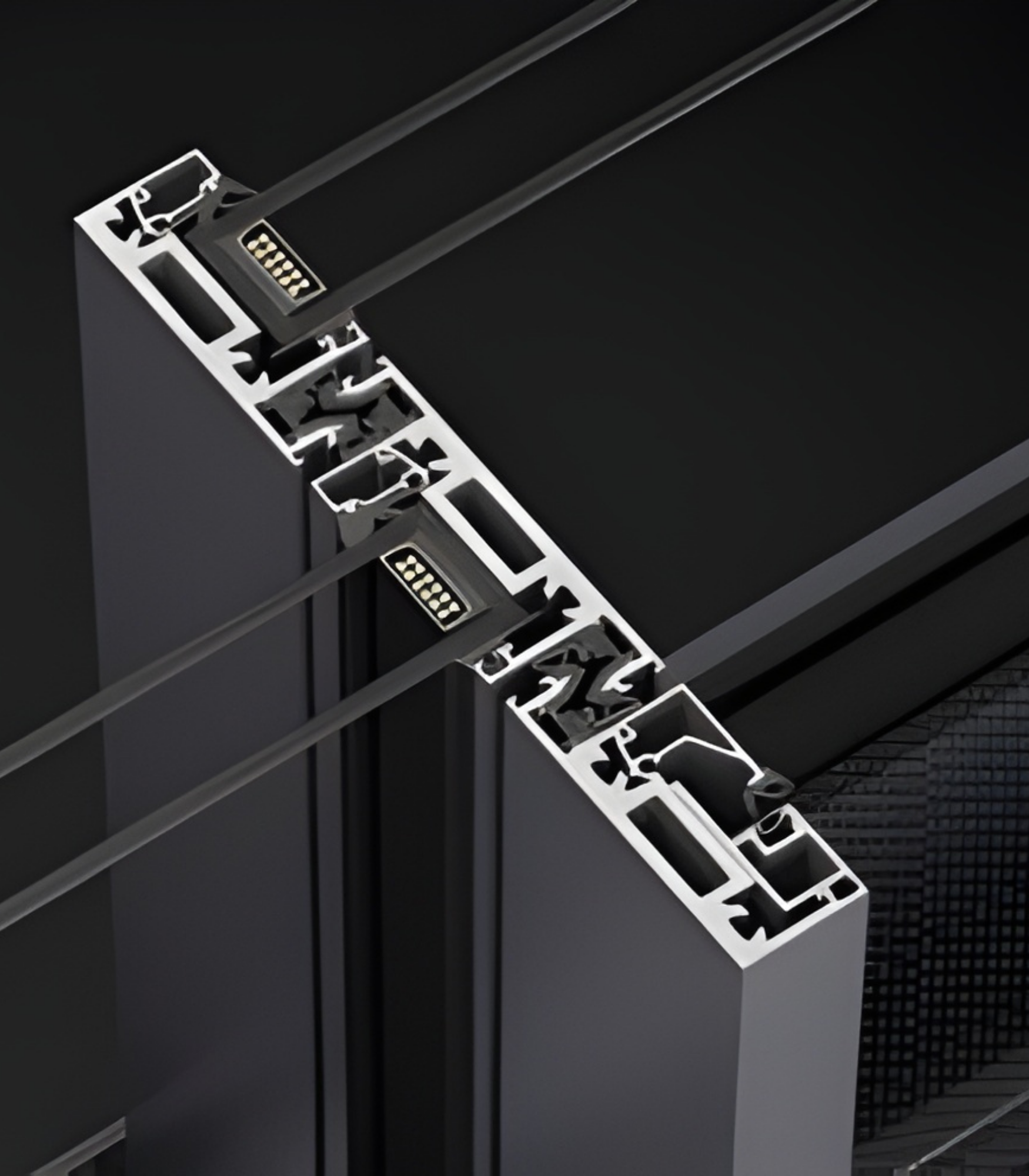

Acoustic Performance - Doral sits under flight paths and near the Palmetto Expressway, the Turnpike, and NW 41st Street traffic. You notice sound more when a wall is mostly glass. The VLX 138’s multi-chamber profile design and glass options including laminated impact glass measurably reduce exterior noise, and we spec glass thickness based on where your opening actually faces.

Airtightness & Weather Seal - The interlocking panel design and full-perimeter weatherstripping stop drafts and keep conditioned air in. On hot Doral afternoons, an airtight slider is the difference between your AC fighting a leaky opening or running in cycles. TruePane installs every VLX 138 with AAMA 812 low-expansion foam on all perimeter joints so the seal is continuous from rough opening to finished trim.

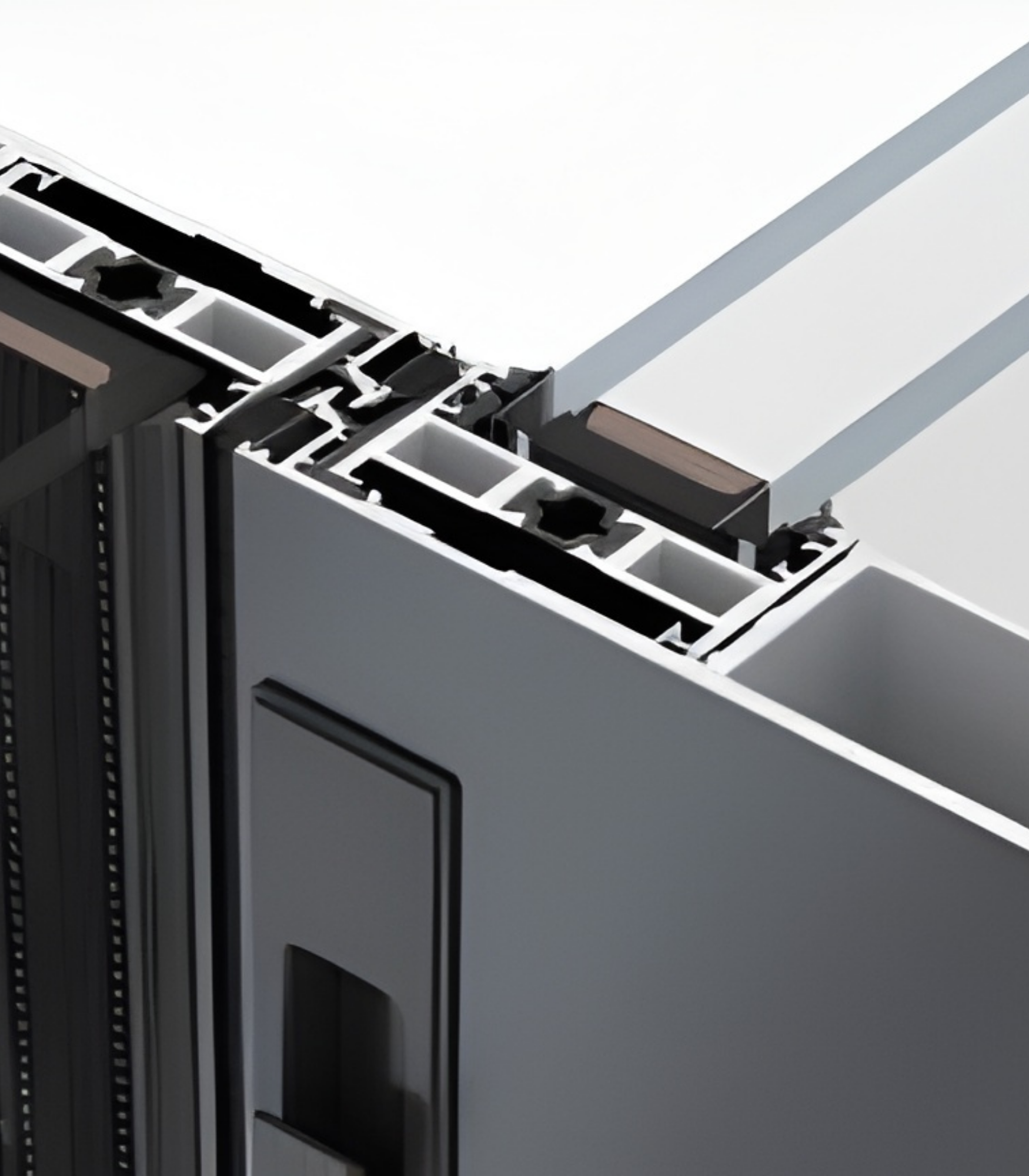

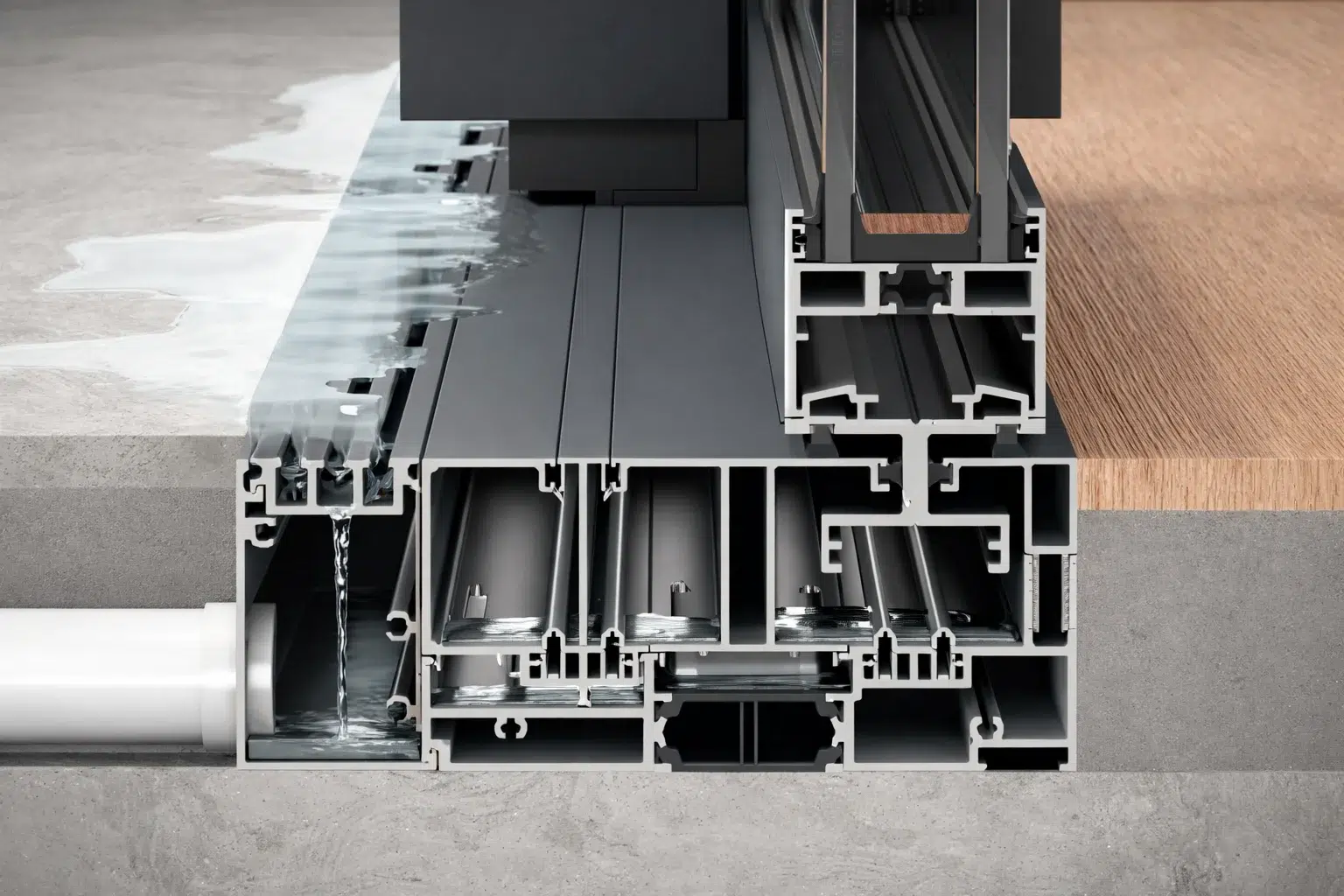

Waterproofing - Florida storms hit horizontally. The VLX 138 has a sloped outer sill design that routes water away from the interior, and the panel interlocks create a capillary break that prevents water from being driven through the seam where panels meet. We install per AAMA 2400/2410 so the opening is flashed correctly and water has a defined path out, never in.

Wind Resistance - Wind-load requirements in Doral are serious, and the VLX 138 is engineered to meet them. The 0.138-inch wall thickness and stainless bearing hardware hold up under storm loading that flexes standard sliders. For openings that require missile-impact protection, ViewLux offers impact-resistant laminated glass, which we recommend for most Doral installations given the cost difference versus the risk of one bad storm season.

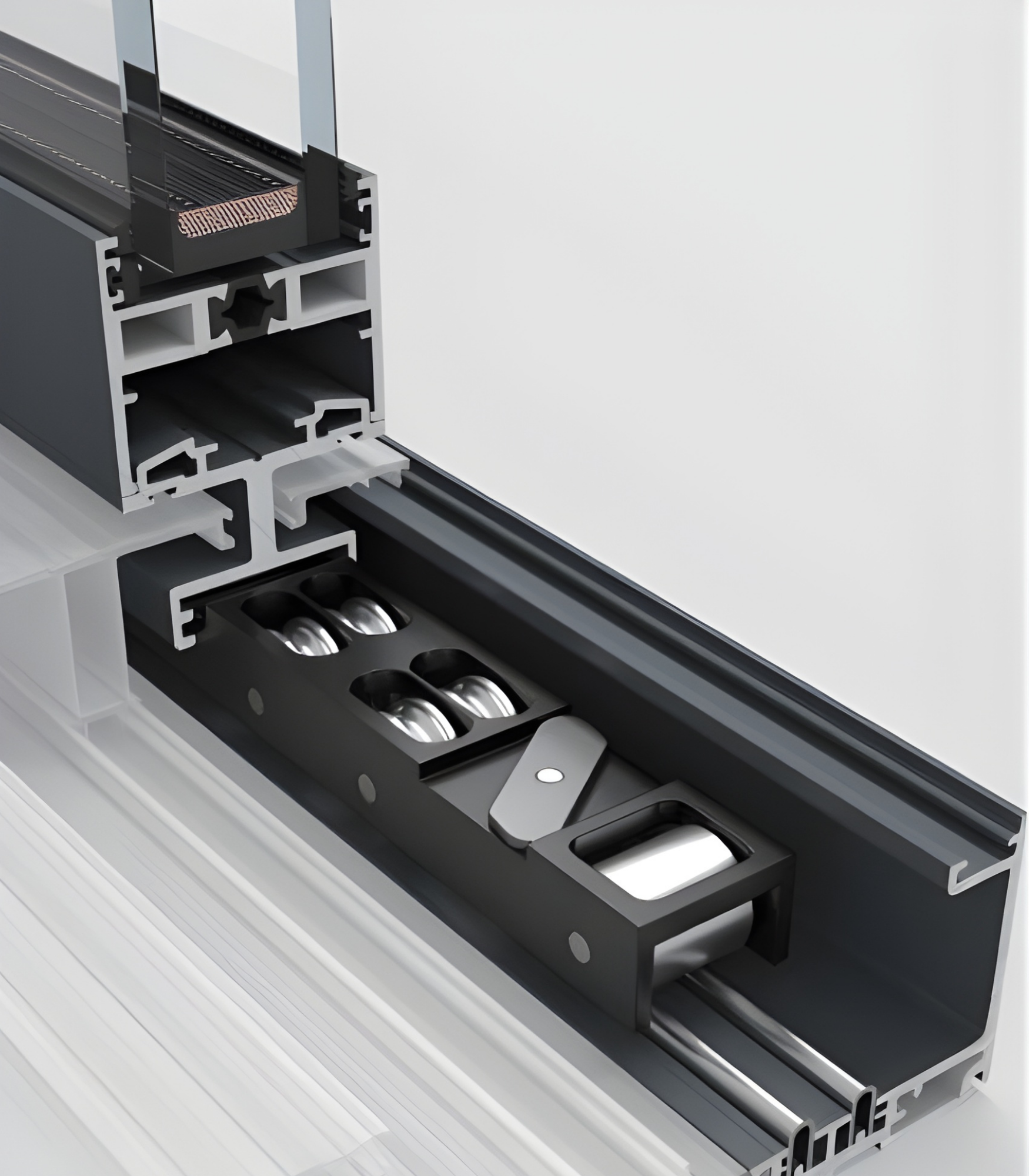

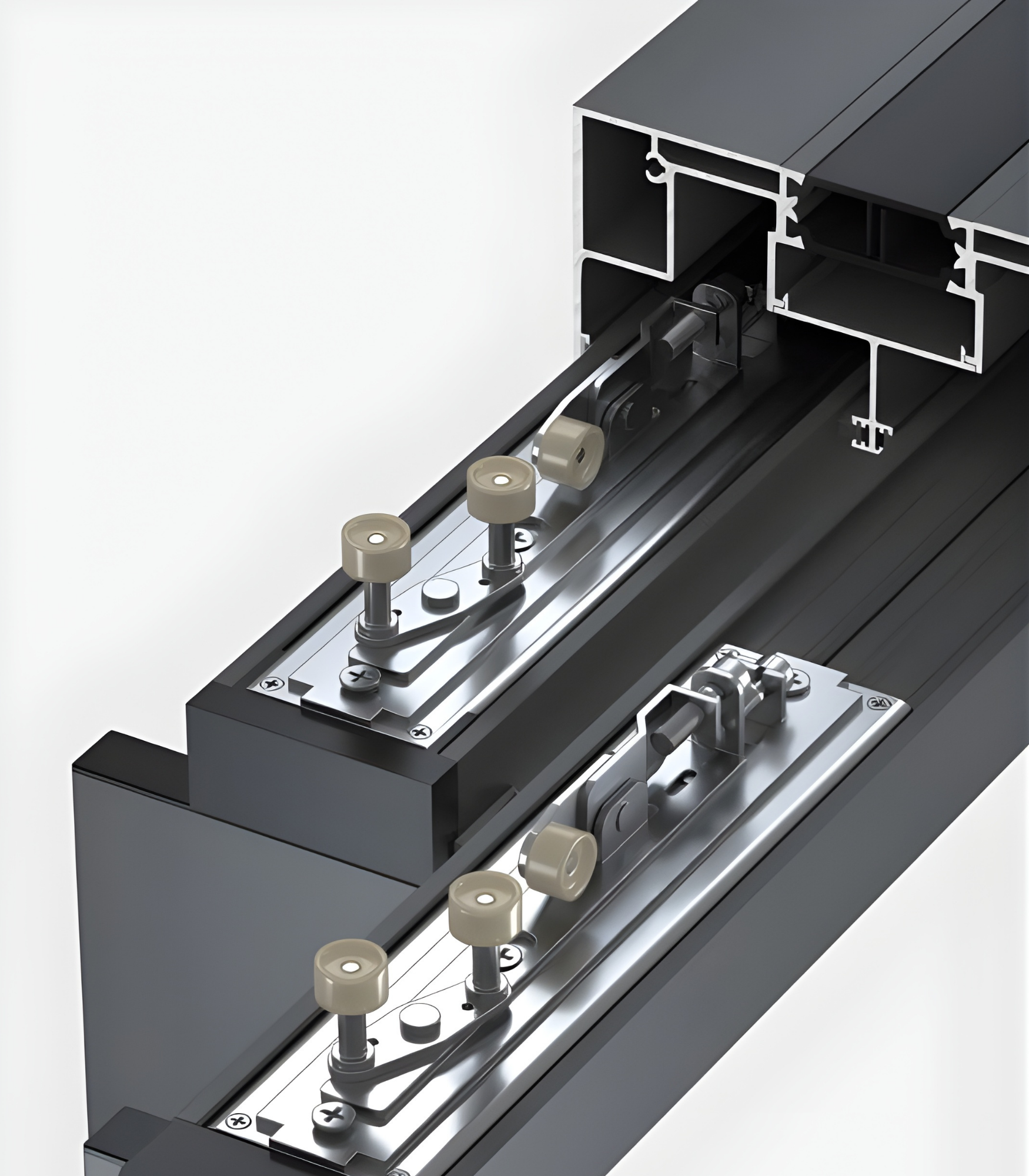

Security & Hardware - The multi-point locking system engages at multiple locations along the panel, not just one center latch. Stainless steel roller bearings ride on a track that resists corrosion in Doral’s humidity. The lock hardware is concealed in the slim 1.535-inch profile, so the door looks clean but locks like it means it. That matters on a ground-floor slider facing a patio or side yard.

Color & Glass Options

The VLX 138 comes in six finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Premium Black is the dominant choice in modern Doral builds, especially Downtown Doral condos and newer contemporary homes where black frames give the glass a crisp, gallery-like edge. Pure White suits bright, airy great rooms and pairs well with coastal interiors. Anodized Silver delivers the natural aluminum look with a matte texture that hides salt and fingerprints, a practical choice in Doral’s humidity. Bronze runs warm and hides sun glare, while Champagne leans softer and plays well with gold and cream interiors. Teak Wood is a wood-grain aluminum finish for homeowners who want warmth without wood maintenance in the Florida climate.

Glass options include Clear for maximum light, Low-E for thermal control (our default recommendation for any Doral opening that gets direct sun), Frosted for privacy on bathrooms or side entries, Obscure for full privacy where light still passes, Black Tint for heavy sun control with a darker exterior look, and Gray Tint for subtle glare reduction. For Doral homes within missile-impact zones, impact-rated laminated glass is available and worth serious consideration when you are already investing in a panoramic door. Call (386) 854-7948 and we’ll show you finish and glass samples at your home in Doral.

Installation by TruePane Windows & Doors in Doral

Here’s something most dealers will not say clearly: a panoramic sliding door is only as good as its installation. The manufacturer warranty hinges on correct installation, and a 36-foot door that is even slightly out of level will bind, leak, and eventually fail. TruePane Windows & Doors installs every VLX 138 in Doral per AAMA 2400/2410 standards, which is the installation standard the warranty expects.

Our process starts before the door arrives. We measure the rough opening to the eighth inch, check the floor for level across the full span, and verify the header can carry the load. On a 36-foot opening, a half-inch of slab dip is common in Doral homes, and we correct for it before the door ever goes in. We set the frame level, plumb, and square, shimming and anchoring as required, then apply AAMA 812 low-expansion foam sealant on every perimeter joint. That foam does the work no shim can: it seals the gap between the rough opening and the frame so air, water, and sound cannot find a path around the door. Then we hang the panels, dial in the roller height, test the glide, and run a water test on the sill before we finish the trim and clean the site.

Doral-specific considerations matter here. Our humidity stresses adhesives and sealants. Storm season tests waterproofing. Building codes in Doral require wind-load-rated products and proper anchoring. We account for all of it, and we pull permits so the inspection is on record. When you hire TruePane Windows & Doors for a VLX 138 in Doral, you’re hiring an authorized ViewLux partner who does this exact installation, not a general contractor trying to figure out a 36-foot slider for the first time.

Frequently Asked Questions - VLX 138 Panoramic Sliding Door

Get a Quote - VLX 138 Panoramic Sliding Door in Doral

If you’re researching the VLX 138, you’re already thinking about the wall, the view, and the opening. The next step is a free on-site measurement with TruePane Windows & Doors in Doral. We’ll confirm the span, check the slab, walk you through finish and glass samples, and hand you a fixed written quote before we leave. Call (386) 854-7948 to schedule yours.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Doral, FL.
